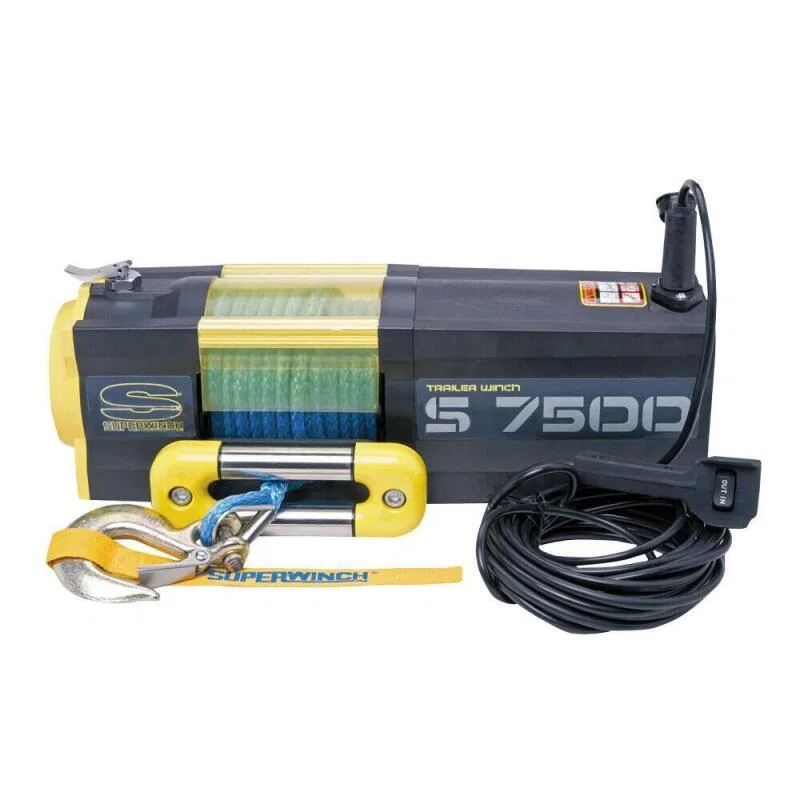

Superwinch 7500 LBS 12V DC 5/16in x 54ft Synthetic Rope S7500 Winch

Part # 1475201SKU SUE1475201

Universal fit

Specifications
BrandSuperwinch
Part typeWinch
UPC / GTIN00022705006057
  • 3.6 Hp Permanent Magnet Motor Provides Dynamic Braking
  • Lever Style Freespool Allows Hand Or Foot Operation
  • Steel Cut Gears For Better Engagement And Longevity
  • 3-Stage Planetary Gearing With 249:1 Ratio
  • Synthetic Rope Measures 5/16 In. X 54 Ft.
  • Stainless steel 2-way roller fairlead
  • Stainless Steel 2-Way Fairlead
  • Automatic load holding brake
  • Rated Line Pull Of 7500 Lbs
  • 7,500 lbs. capacity
  • 30 ft. wire remote
  • Sealed Solenoid

Description

The S7500 Winch pulls 7,500 lbs with a 3.6 hp permanent magnet motor driven through an all steel 3-stage planetary gear box. The tinted protective cover protects the cable, drum and operators fingers. Machined aluminum freespool lever can be easily operated by foot. Innovative 2-hole drum prevents steel cable from detaching from drum.
