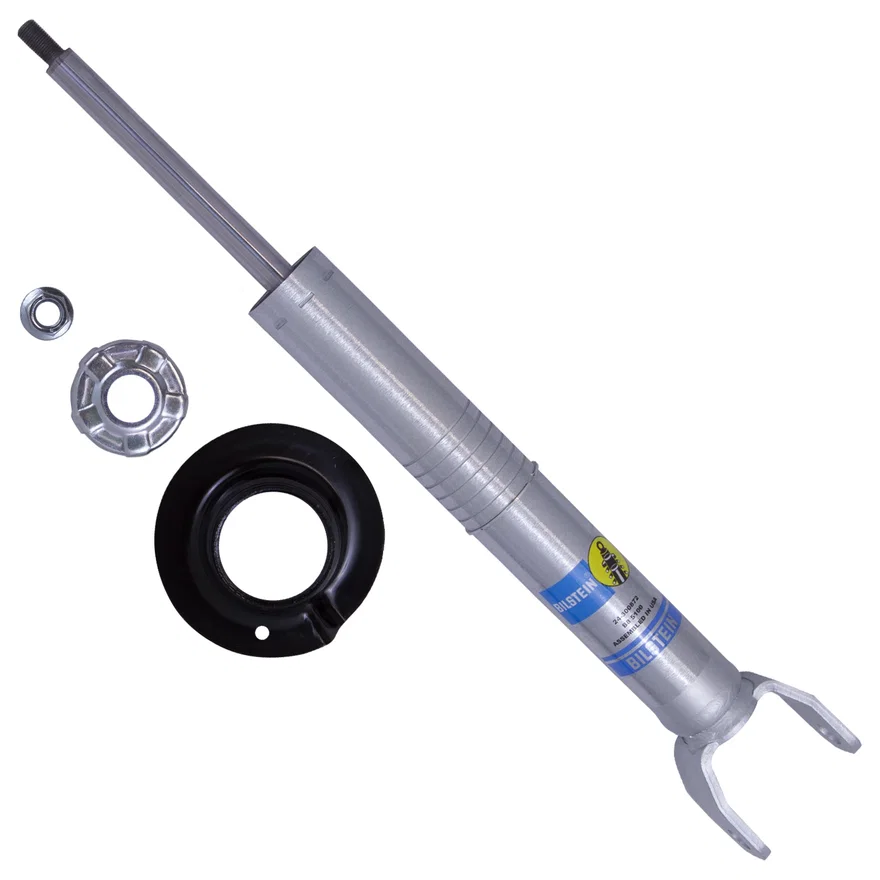

Bilstein B8 5100 (Ride Height Adjustable) Front Suspension Shock Absorber for Ram 1500
Part # 24-300872SKU BIL24-300872
Set your vehicle above for a fit verdict. 5 vehicles listed below.
| Brand | Bilstein |
|---|---|
| Part type | Suspension Shock Absorber |
| Position | Front |
| Adjustable Damping | Non-Adjustable |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Boot Included | No |
| Collapsed Length (IN) | 16.00 |
| Collapsed Length (MM) | 406.5 |
| Extended Length (IN) | 22.08 |
| Extended Length (MM) | 560.9 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Clevis |
| Piston Diameter | 46mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Max Travel (IN) | 6.08 |
| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| UPC / GTIN | 00651860849119 |
| Warranty | Lifetime warranty |
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Description
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
More from Bilstein
| 24-317887 | $251.99 |
| 24-336895 | $251.99 |
| 24-187374 | $175.99 |
| 24-336994 | $251.99 |
| 33-238319 | $175.99 |
| 24-251778 | $175.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2019 - 2020 | Ram | 1500 | Big Horn, HFE, Laramie, Laramie Longhorn, Lone Star, Rebel, Tradesman |
| 2021 | Ram | 1500 | Big Horn, HFE, Laramie, Laramie Longhorn, Limited Longhorn, Lone Star, Longhorn, Rebel, Tradesman |
| 2022 - 2024 | Ram | 1500 | Big Horn, HFE, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman |
| 2025 | Ram | 1500 | Big Horn, Laramie, Lone Star, Rebel, Tradesman, Tradesman HFE, Warlock |
| 2026 | Ram | 1500 | Big Horn, Express, Laramie, Lone Star, Rebel, Tradesman, Warlock |
