Part # 25-311365SKU BIL25-311365
Set your vehicle above for a fit verdict. 8 vehicles listed below.
| Brand | Bilstein |
|---|---|
| Part type | Suspension Shock Absorber |
| Position | Rear |
| Adjustable Damping | Non-Adjustable |
| Billet Reservoir Clamp Included | Yes |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | No |
| Collapsed Length (IN) | 15.22 |
| Collapsed Length (MM) | 386.5 |
| Extended Length (IN) | 25.72 |
| Extended Length (MM) | 653.2 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12.4mm |
| Piston Diameter | 46mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 5160 |
| Spring Max Travel (IN) | 10.50 |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| UPC / GTIN | 00651860893105 |

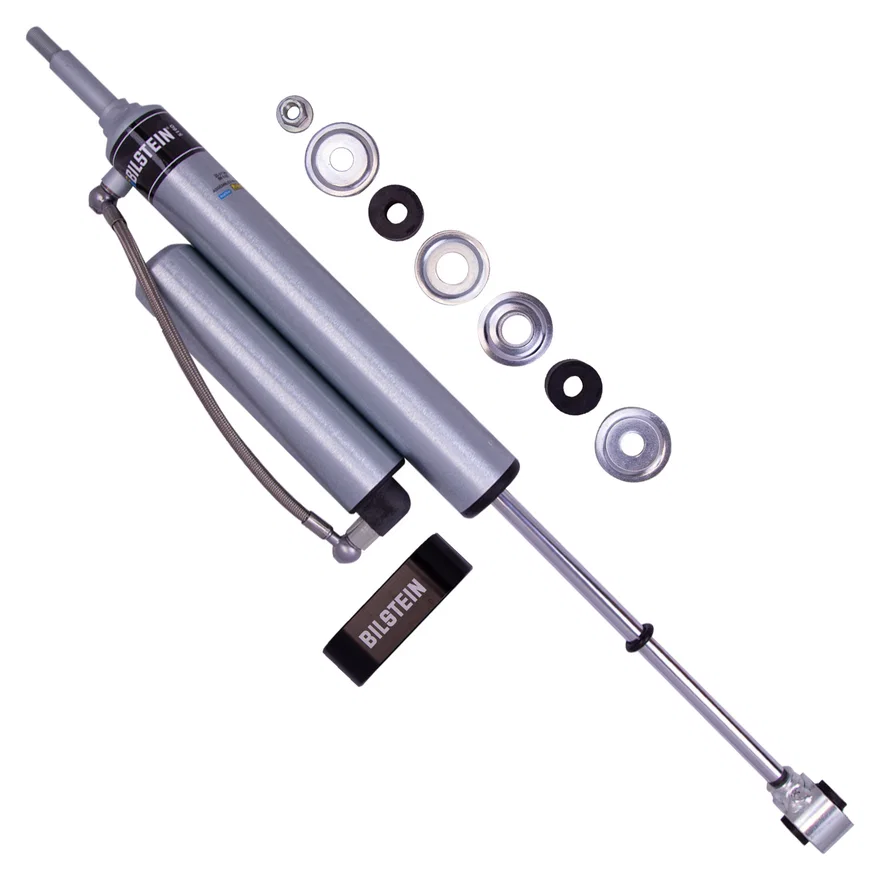

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
| 24-317887 | $251.99 |
| 24-336895 | $251.99 |
| 24-187374 | $175.99 |
| 24-336994 | $251.99 |
| 33-238319 | $175.99 |
| 24-251778 | $175.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007 - 2009 | Toyota | Tundra | Base, Limited, SR5 |
| 2010 - 2011 | Toyota | Tundra | Base, Limited, Platinum, SR5 |
| 2012 - 2013 | Toyota | Tundra | Base, Limited, Platinum |
| 2014 | Toyota | Tundra | 1794 Edition, Limited, Platinum, SR, SR5 |
| 2015 - 2017 | Toyota | Tundra | 1794 Edition, Limited, Platinum, SR, SR5, TRD Pro |
| 2018 | Toyota | Tundra | 1794 Edition, Limited, Platinum, SR, SR5 |
| 2019 - 2020 | Toyota | Tundra | 1794 Edition, Limited, Platinum, SR, SR5, TRD Pro |
| 2021 | Toyota | Tundra | 1794 Edition, Limited, Nightshade, Platinum, SR, SR5, TRD Pro, Trail |
