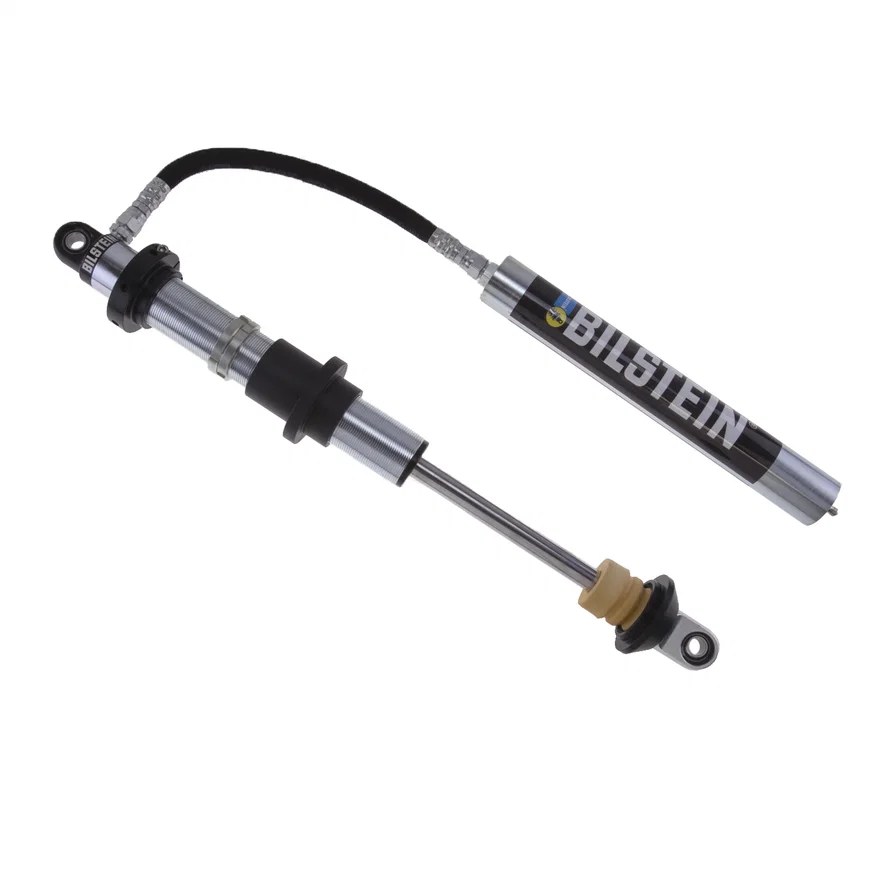

Bilstein B8 8125 - Suspension Shock Absorber

Part # 33-225524SKU BIL33-225524

Universal fit

Specifications
BrandBilstein
Part typeSuspension Shock Absorber
Body DesignThreaded Body Screw Top (Coilover)
Collapsed Length (IN)17.00
Collapsed Length (IN) Rounded17
Collapsed Length (MM)431.8
Compression @0.52m/s1000
Extended Length (IN)27.00
Extended Length (IN) Rounded27
Extended Length (MM)685.8
FinishZinc Plated
Internal DesignMonotube
Lower Mount TypeEye .5x1.5in
Mount TypeEye-to-Eye
Optional Reservoir ClampB4-KT1-Z315A00
Piston Diameter46mm
Rebound @0.52m/s2550
ReservoirYes
SegmentMotorsports
SeriesB8 8125
Spring Max Travel (IN)10.00
Spring Seat IncludedYes
Upper Mount TypeEye .5x1.5in
UPC / GTIN00651860756165
  • Available in 46mm and 60mm monotubes for consistent, fade-free performance
  • Threaded body with dual-rate coilover hardware
  • Remote reservoir for greater resistance to heat and increased travel length

Description

Bilstein B8 8125 coilovers are engineered for the serious off-road enthusiast, available in both 46mm (2 inch) and 60mm (2.65 inch) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths, these performance coilovers are perfect for custom coilover suspension applications. Equipped with a competition designed, 3-stage seal pack, these coilovers withstand the harshest off-road environments. All B8 8125 coilovers include a 22mm hard chromed, case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. Bilstein B8 8125 coilovers are completely owner rebuildable with replacement parts available from Bilstein. All components are machined to precise tolerances and made in the USA to insure high quality.
