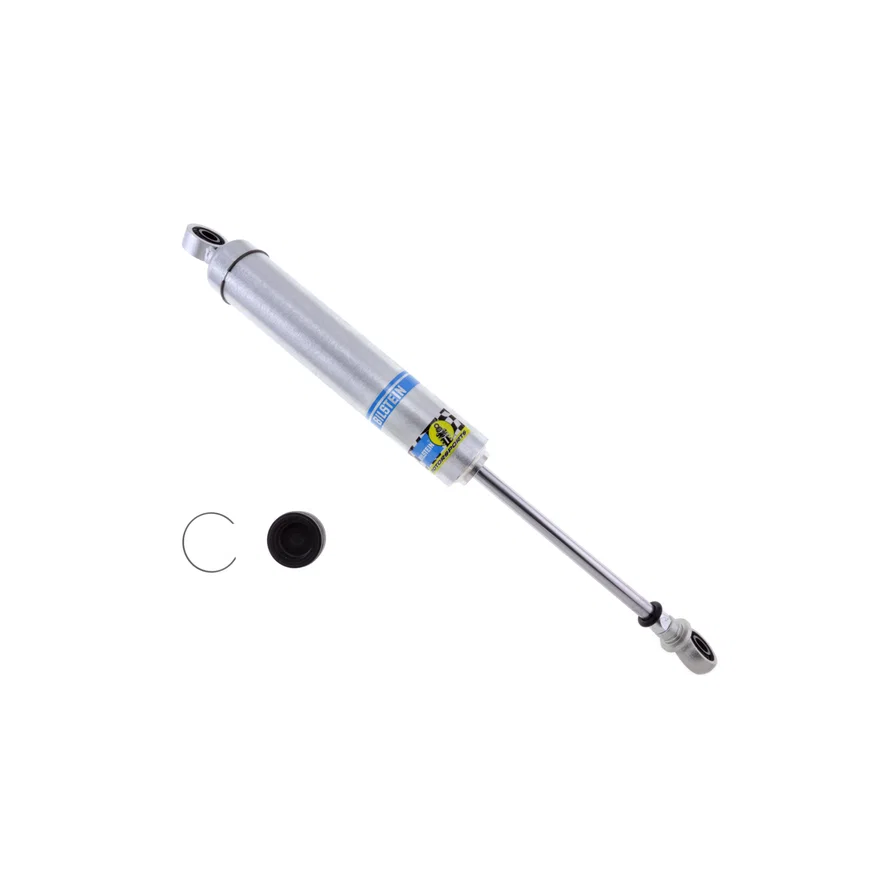

Bilstein SZ Series - Suspension Shock Absorber
Part # 33-243443SKU BIL33-243443
Universal fit
| Brand | Bilstein |
|---|---|
| Part type | Suspension Shock Absorber |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-coilover) |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length (IN) | 13.15 |
| Collapsed Length (MM) | 334.0 |
| Extended Length (IN) | 20.08 |
| Extended Length (MM) | 510.0 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | 1/2in Heim |
| Piston Diameter | 46mm |
| Piston Type | Digressive |
| Segment | Motorsports |
| Series | SZ Series |
| Spring Hardware | B4-BOA-0000117 |
| Spring Max Travel (IN) | 6.93 |
| Spring Seat Included | No |
| Upper Mount Type | 1/2in Heim |
| UPC / GTIN | 00651860750323 |
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- Standard 1/2” graphite heims
Description
Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
